Thickness Tester

Achieve Accurate Thickness Measurement for Plastic Films and Packaging Materials

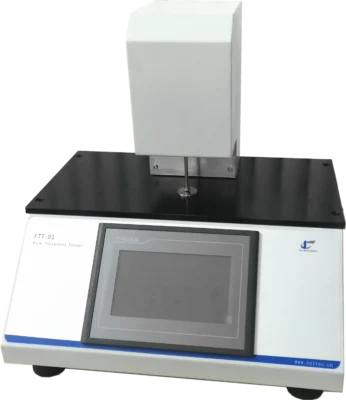

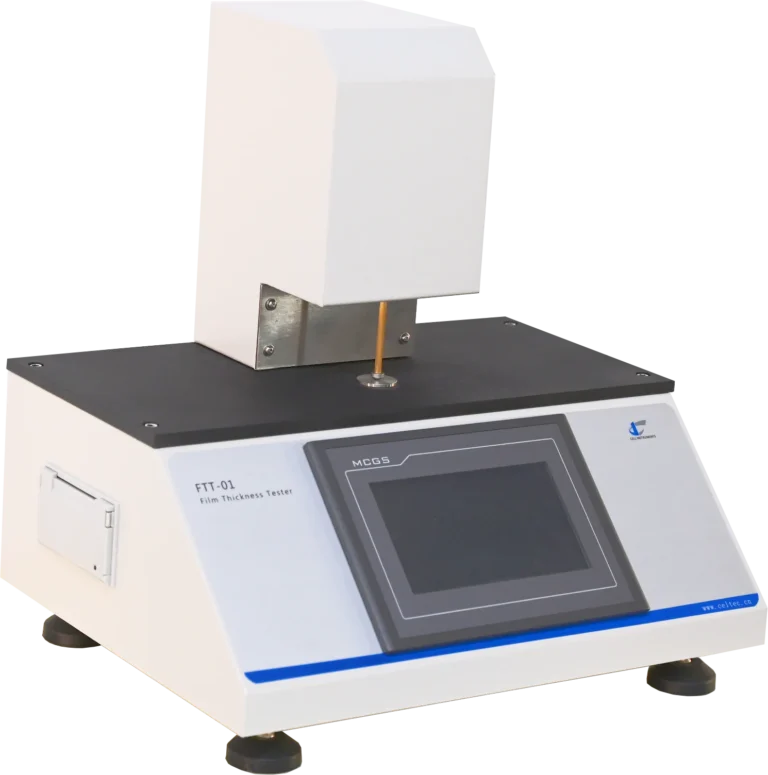

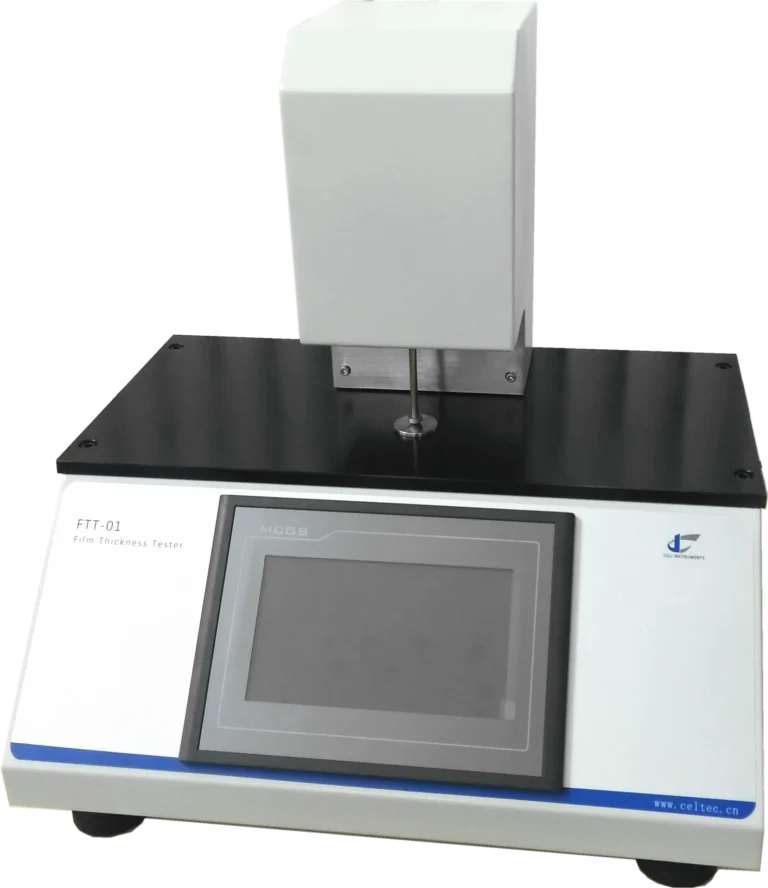

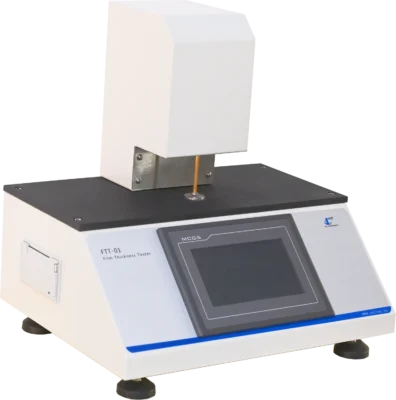

    FTT-01 Thickness tester

    The FTT-01 Thickness Tester is a state-of-the-art instrument for precise measurement of thin films, sheets, textiles, and more. It ensures compliance with standards like ASTM D374 and ISO 4593, providing accurate, reliable, and consistent results essential for packaging and R&D applications.

    Overview: Why Film Thickness Testing Matters

    Tear resistance is a crucial property for packaging materials, especially for stretch wrap films and food wrap films. These films protect goods during storage and transit, requiring optimal tear strength to withstand stress. The Elmendorf Tear Tester, named after inventor Armin Elmendorf, provides an accurate measure of tear resistance, ensuring the quality and reliability of these films.

    Wrap films, such as those used for palletizing goods or preserving food, demand high resistance to mechanical stress, environmental factors, and handling conditions. Testing their tear strength ensures performance and cost efficiency.

    Necessity: Why You Need the FTT-01 Thickness Tester

    Consistency in Product Quality

    Accurate film thickness measurement ensures your products meet quality specifications, reducing defects and improving customer satisfaction.

    Cost Optimization

    Precise measurements help reduce material waste and control production costs by preventing overuse of materials.

    Regulatory Compliance

    Comply with international standards like ASTM D374 and ISO 4593, essential for market acceptance and quality certifications.

    Competitive Edge

    Reliable products foster customer loyalty, giving you an advantage in a competitive market.

    Working Principle: The Science of Thickness Testing

    The FTT-01 Thickness Tester operates on a mechanical scanning principle:

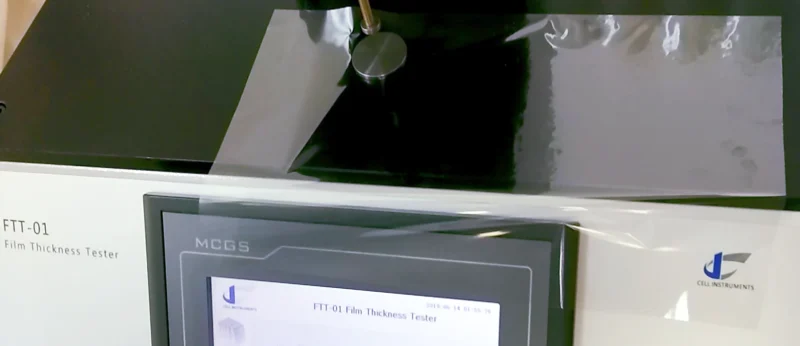

    1. Sample Placement: A sample is placed on the instrument’s flat base with an anvil.
    2. Weighted Presser Foot: The instrument’s presser foot, calibrated to exert a precise force, is lowered onto the sample.
    3. Thickness Measurement: The instrument calculates the distance between the presser foot and the base, providing an accurate thickness reading.

    This process ensures consistent measurements for a variety of materials, including thin films, textiles, and paper.

    Advantages of the FTT-01 Thickness Tester

    Provides reliable measurements down to 0.1 μm resolution.

    Controlled via a PLC with an intuitive HMI touch screen.



    Measures plastic film thickness, textiles, paper, and membranes with ease.

    Displays maximum, minimum, average, and standard deviation values instantly.

    Adheres to international test standards like ASTM D1777 and ISO 534-2011.

    Configurations and Accessories

    Standard Features

    • Main instrument with automated presser foot control.
    • Real-time data display for film thickness measurement.

    Standard: Includes the tester, calibration weight, power cord, manual, fuse.

    Optional Add-Ons

    • Automatic Feeding System: For high-throughput operations.
    • PC Software: Enables integration with external software for detailed analysis.

    Optional Accessories:

    PC software, COM Line, sample blade, auto feeding, manual feeding, optional presser foot, etc.

    Support and Training

    We provide comprehensive support to help you get the most out of your FTT-01 Thickness Tester. Our services include:

    • Installation Support: Assistance with setup and calibration.
    • Training Materials: In-depth training on how to operate the tester.
    • Technical Support: Ongoing customer service for any operational issues or inquiries.
    • Upgrades and Maintenance: Keep your equipment up to date with the latest program.

    To save cost for customers, we recommended our always free-of-charge online/remote way of above services.

    FAQs about Thickness Tester

    What is the primary use of the FTT-01 Thickness Tester?

    The FTT-01 is designed to measure thin film thickness, making it ideal for quality control in packaging, R&D, and production.

    Can it measure the thickness of textured materials?

    Yes, the tester can accurately measure materials with slight textures, such as textiles or embossed films.

    Is it suitable for high-volume testing?

    With optional automatic feeding systems, the tester is perfect for high-throughput applications.

    Can test results be exported for analysis?

    Yes, the instrument includes an optional RS232 port for seamless data export to analysis software.
