Tensile and Elongation Tester – Comprehensive Guide to Physical Tension and Elongation Test of Stretch Wrap Films


    TST-01 Tensile and Elongation Tester

    The TST-01 Tensile and Elongation Tester is a precision testing solution designed to measure tensile strength, elongation rate, and other key performance characteristics (such as peeling, seal strength, tear, etc.) of materials such as films, plastics, composites, and adhesives. It provides reliable results for packaging, R&D, and quality control applications in industries such as packaging, medical, and automotive.

    Overview of Tensile and Elongation Tester

    The TST-01 Tensile and Elongation Tester is a versatile material testing machine used to measure the tensile strength, elongation, and other mechanical properties of materials such as plastic films, composites, rubber, adhesives, and more. It offers high precision in testing tensile and elongation characteristics, critical for evaluating materials used in packaging, medical products, and other industries where performance under stress is essential.

    Designed for professional use in R&D labs, production lines, and quality control, the TST-01 is equipped with advanced features such as PLC control, HMI touch-screen operation, and a precision ball lead screw mechanism, ensuring stable and reliable results across a wide range of materials.

    Applications

    The TST-01 Tensile and Elongation Tester is designed for a broad spectrum of applications, primarily in testing the mechanical properties of materials used in packaging and related industries. Some key applications include:

    • Plastic Films (stretch films, food wrap films, protective films)
    • Composite Materials
    • Soft Packaging Materials
    • Adhesives and Adhesive Tapes
    • Medical Plasters and Release Papers
    • Rubber, Non-Woven Fabrics, and Paper
    • Aluminum Foil and Backing Sheets
    • Plastic Flexible Tubes
    • Diaphragms and Label Stickers
    • Medical and Food Packaging Materials

    The tester is also applicable in other specialized industries such as automotive manufacturing, textiles, and consumer electronics, where tensile strength, elongation, and tear resistance are crucial properties. The film tensile and film elongation tests are used to evaluate the material’s ability to withstand tension and deformation under load, ensuring optimal performance in end-use applications.

    Why You Must Need the TST-01 Tensile and Elongation Tester

    In the packaging and material manufacturing industries, tensile and elongation tests are essential to determine the strength and durability of materials. The elongation rate of a material gives insights into its flexibility and stretching potential before failure. Without these crucial measurements, manufacturers risk using materials that may not perform as expected in real-world applications, leading to product failures, safety hazards, and costly reworks.

    With the TST-01 Tensile and Elongation Tester, professionals can assess the tensile strength and elongation at break of materials, ensuring that packaging solutions meet industry standards and customer expectations. The elongation at break test helps to identify whether the material can maintain its integrity under stress and is especially critical for thin films and packaging that may need to stretch during handling or transportation.

    Working Principle

    The TST-01 is a CRE type tensile testing machine (constant-rate-of-extension) that operates based on a precision ball lead screw mechanism, which ensures consistent movement and accurate control over the testing speed and displacement. The tester applies a constant speed to the sample, gradually elongating it while measuring the force required to continue stretching. As the material stretches, the machine records the tensile force and elongation rate, allowing for real-time monitoring of the sample’s behavior under stress.

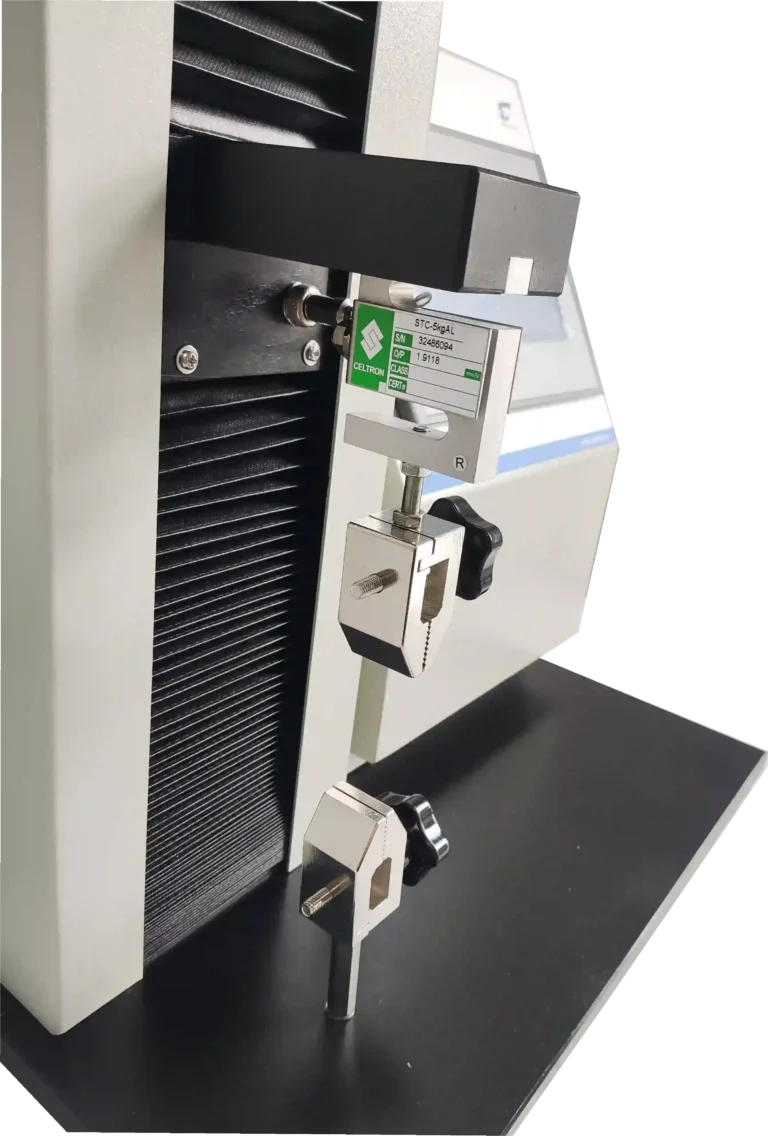

    The process begins by clamping the sample between two grips. The machine then applies a force that stretches the material, recording the force and elongation at various intervals. The elongation at break is determined when the material finally fails or breaks. The results are then displayed on the HMI touch screen or can be printed via an optional microprinter or exported via RS232 data output for further analysis.

    Test Process:

    1. Specimen Preparation: A sample of the film is cut to size 150mm*150mm or a 150mm wide roll sample, and its thickness is measured.

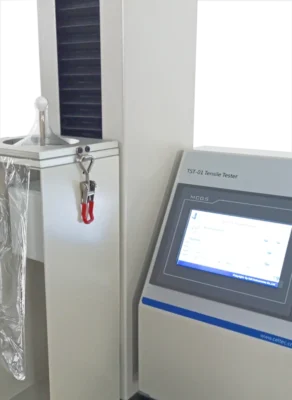

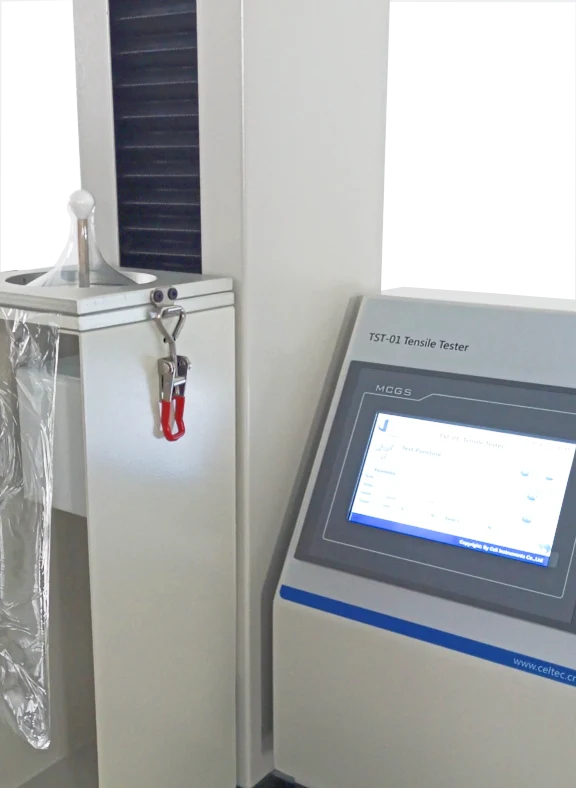

    2. Probe Application: A pear-shaped TFE-coated probe is used to apply force to the film. The probe penetrates the material at a low rate of speed 250mm/min.
    3. Force and Penetration Measurement: The maximum force required to puncture the film, along with the penetration distance are recorded.
    4. Data Analysis: The data collected during the test provides insight into the strength of the film’s puncture.

    This method ensures that the tester simulates real-life conditions where the film may be subjected to puncture or stress from sharp objects or mishandling.

    Advantages of the Protrusion Puncture Tester

    The TST-01 offers precise displacement control with 0.01mm accuracy in displace and better than 0.5% force reading accuracy, ensuring reliable test results across materials.

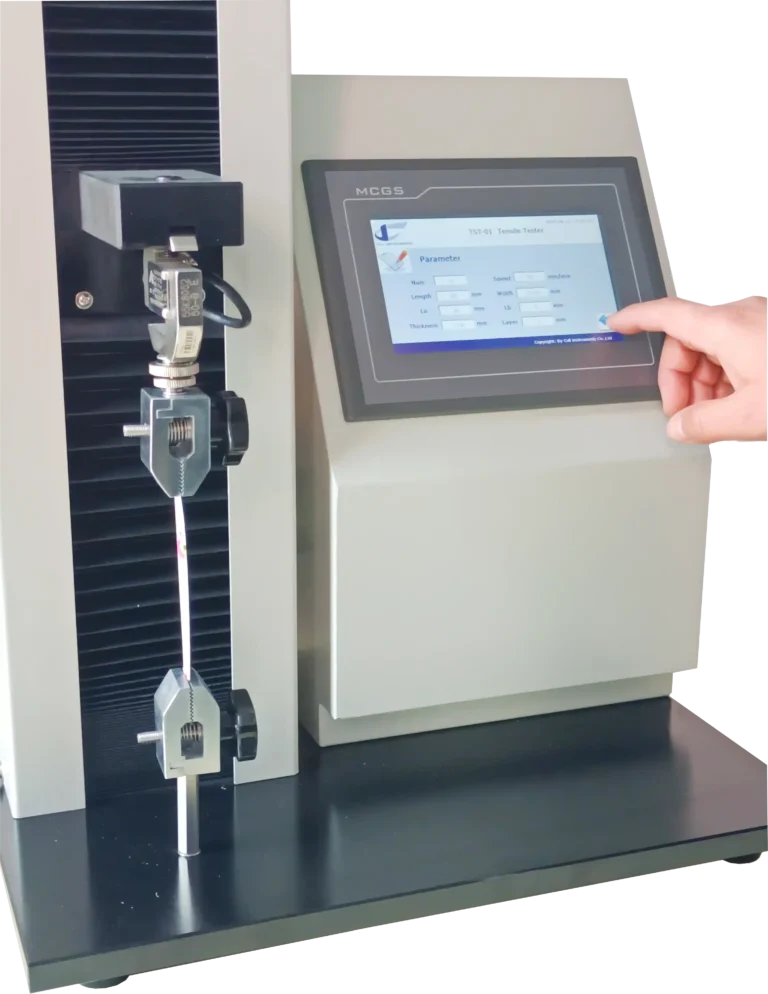

    The 7-inch HMI touch screen provides intuitive control, making operation simple for both new and experienced users.

    In addition to tensile and elongation tests, the machine can perform other essential tests like peeling, seal strength, and puncture force.

    The tester can accommodate various test samples and materials, from thin films to robust composite materials.

    Results can be displayed on the screen, printed on a microprinter (optional), or transmitted to external devices via RS232 for detailed analysis.

    Tailored to meet specific testing needs with adjustable stroke lengths and sample widths.

    Configurations and Accessories

    The TST-01 Tensile and Elongation Tester offers several configurations and accessories to enhance its functionality

    Standard: Includes the tester, sample jaws, RS232 Port, power cord, manual, fuse.

    Optional Accessories:

    PC software, COM Line, sample plate, sample cutter, calibration weight, microprinter, different jaws, loadcell, probe, etc and other customized jigs and standard jigs for other type of tests.

    Daily Chemical Packaging Test Module:

    The tester can adapt to the comprehensive physical analysis of daily chemical and cosmetic packaging materials, including pouches, films, tapes, bottles, boxes, cartons, paperboard, tubes, and more. It ensures reliable testing across a wide range of packaging formats, offering valuable insights into the durability, strength, and performance of packaging materials in real-world applications.

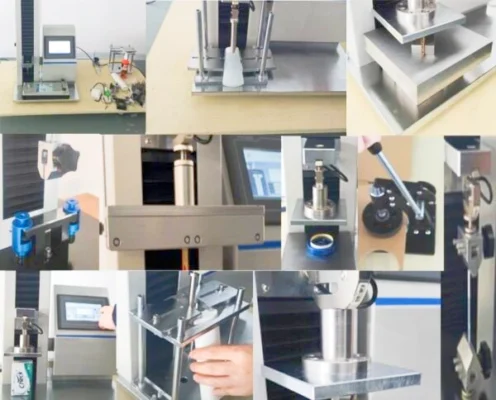

    Daily Chemical packaging quality control



    Medical and Pharma Material Test Module:

    The tensile and elongation tester can perform physical analysis tests on syringes, medical packages, tablets, soft gel, syringes, hypodermic needles, plasters, catheters, etc.

    Other types of physical tests for many more materials can be realized on the tester and we’ve gained great experience in providing these customized solutions.

    Medical and Pharma Material Test

    Support and Training

    At Cell Instruments, we provide comprehensive support and training for our customers to ensure they maximize the potential of their SPC-01 Peel Cling Tester. Our services include:

    • Installation Support: Assistance with setup and calibration.
    • Training Materials: In-depth training on how to operate the tester.
    • Technical Support: Ongoing customer service for any operational issues or inquiries.
    • Upgrades and Maintenance: Keep your equipment up to date with the latest program.

    To save cost for customers, we recommended our always free-of-charge online/remote way of above services.

    FAQs about Peel Cling Tester

    What types of materials can the TST-01 test?

    The TST-01 can test a wide range of materials, including plastic films, adhesives, rubber, composites, medical plasters, and packaging materials, and a lot more that involves force measurement.

    How does the TST-01 measure elongation?>

    Elongation is measured as the increase in length of the material when a tensile force is applied until the material breaks. The machine records the displacement and force throughout the pulse measurement of the motor.

    Can the TST-01 test materials with varying thicknesses?

    Yes, the machine can accommodate materials with different thicknesses and can be customized with various fixtures to suit specific material properties.

    Is the TST-01 compatible with external software for data analysis?

    Yes, the TST-01 offers optional software integration via RS232 for detailed analysis and report generation.
