SPC-01 Peel Cling Tester – Advanced Testing for Stretch Wrap Films


    Peel Cling Tester

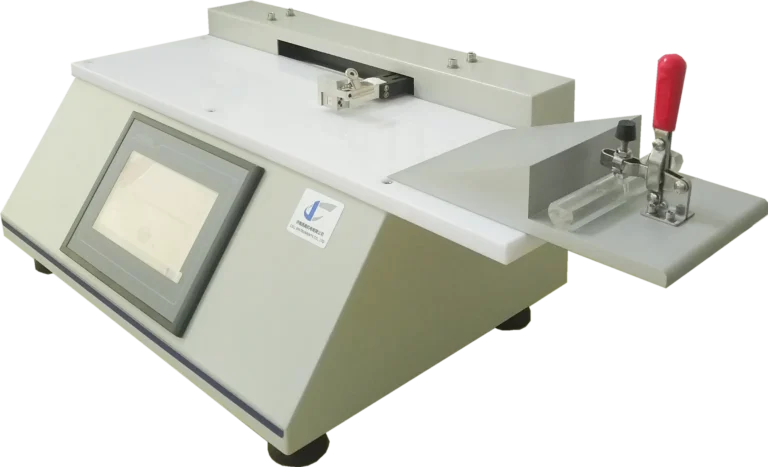

    The SPC-01 Peel Cling Tester is an advanced instrument designed to assess the adhesion strength of stretch wrap films by measuring the cling between two layers of film. This device ensures packaging material meets the required standards for cling and peel, enhancing product security, stability, and quality in various applications.

    Overview of SPC-01 Peel Cling Tester

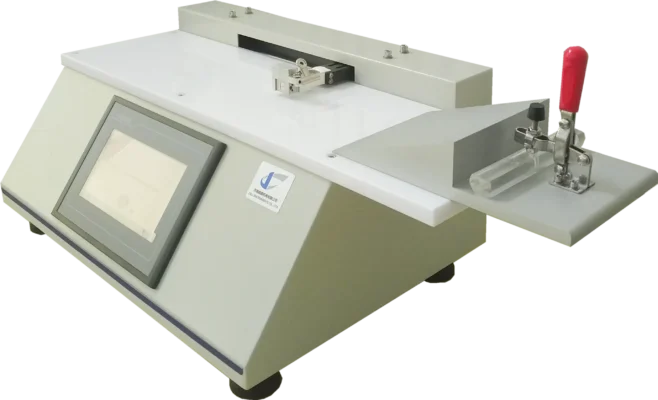

    The SPC-01 Peel Cling Tester is an innovative testing solution designed to evaluate the cling adhesion of stretch wrap films. This specialized tester measures the force required to peel one layer of film from another, providing precise results that indicate the film’s effectiveness in adhering to itself under various conditions. The SPC-01 is vital for manufacturers and quality control labs to ensure that stretch films meet critical cling and peel performance standards.

    Key Features:

    7-inch TFT touch screen for easy operation
    Adjustable test speed for flexibility
    High precision with force and displacement accuracy
    Supports elongation rates of 50%, 100%, and 200%
    Real-time data display and peak value recording
    Built-in microprinter for quick results

    Applications of the SPC-01 Peel Cling Tester

    The Cling Feature of Wrap Films

    The SPC-01 Peel Cling Tester is designed for a broad range of applications in various industries:

    1. Packaging Industry: To test cling films used in pallet wrapping, food packaging, and medical packaging.
    2. Stretch Wrap Film Manufacturers: Ensures the adhesion quality of stretch films for transportation and storage.
    3. R&D and Material Testing Labs: For assessing new materials and optimizing film formulation.
    4. Food Industry: To ensure cling films used for food preservation meet the necessary adhesion standards.
    5. Medical Packaging: To test cling adhesion for medical packaging films, ensuring secure sealing without excessive stickiness.

    Why Do You Need the SPC-01 Peel Cling Tester?

    A reliable cling adhesion test is crucial to ensure that films maintain proper adhesion and stability, especially in packaging that requires the film to hold objects tightly in place without excessive stickiness. Here’s why you need the SPC-01:

    • Ensure Packaging Integrity: Stretch films that are too clingy or too weak can lead to packaging failures. Proper testing ensures the film’s cling properties are balanced for optimal performance.

    • Improve Operational Efficiency: Precise measurements can help manufacturers adjust film formulation or machine settings for consistent performance.

    • Maintain Product Safety: Proper cling ensures that packaging securely holds products, reducing the risk of damage or contamination during transit.

    • Compliance with Standards: The SPC-01 helps manufacturers comply with international standards like ASTM D5458, ensuring products meet regulatory requirements.

    Working Principle of the SPC-01 Peel Cling Tester

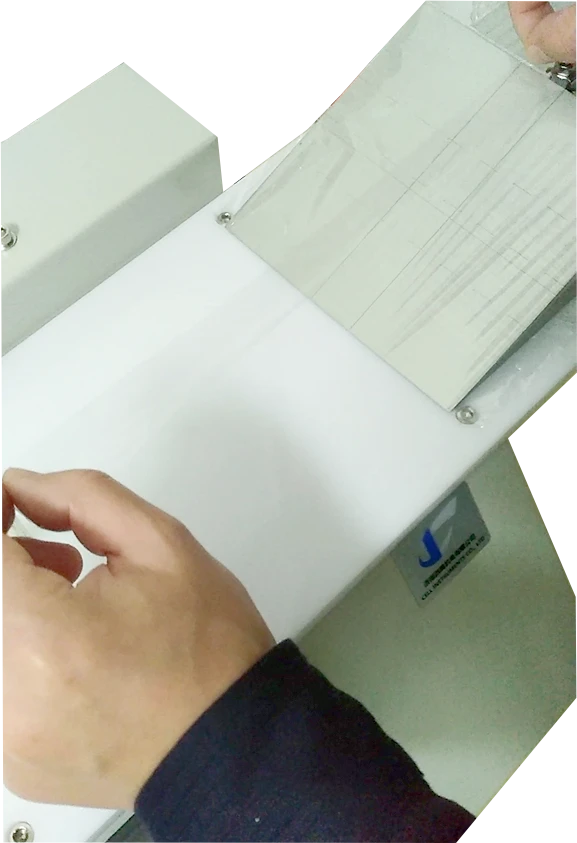

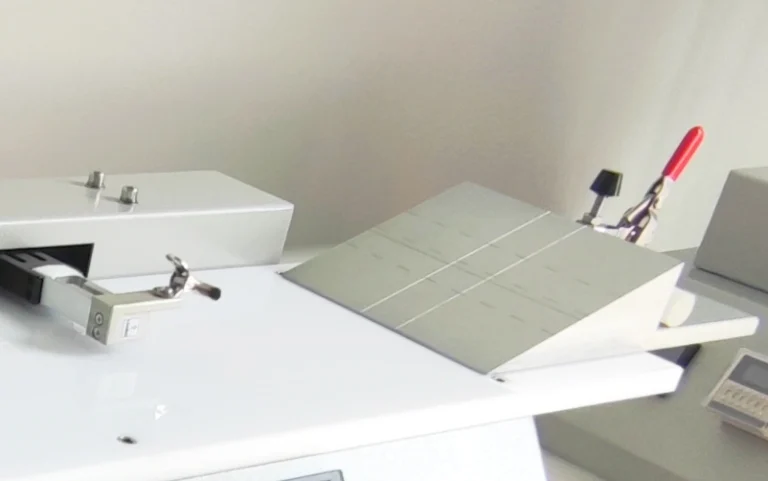

    The working principle of the SPC-01 Peel Cling Tester is based on measuring the force required to peel two layers of stretch film apart. The test setup involves a backing substrate and a smaller film strip. The tester measures the force as the film strip is peeled away from the backing film at a controlled speed.

    Test Procedure:

    1. The larger film sample (backing) is secured on the test fixture.
    2. A smaller strip film sample (25.4mm W) is adhered to the backing film, and the tester begins the peel process.
    3. The tester applies force at a consistent speed (125mm/min) and records the peak force required to peel the film away.
    4. Results are displayed in real-time on the touch screen, with data captured for analysis.

    The SPC-01 uses a precision ball screw system for accurate displacement, eliminating interference that could be caused by friction or gravity.

    Advantages of the SPC-01 Peel Cling Tester

    The SPC-01 offers highly accurate test results with minimal error, ensuring that your cling films meet the highest standards.

    The 7-inch TFT touch screen provides an intuitive interface, making the device easy to operate even for beginners.

    The adjustable test speed and elongation rates of 50%, 100%, and 200% provide flexibility for testing various wrap film types.

    Meets ASTM D5458, ensuring that results are consistent with international testing protocols.

    Real-time data display, peak value recording, and microprinting functionality ensure quick and accurate reporting.

    The SPC-01 is built for durability and requires minimal maintenance, reducing downtime in testing labs.

    Configurations and Accessories

    The SPC-01 Peel Cling Tester can be configured with various accessories to meet your specific testing needs:

    Standard: Includes the tester, sample clamp, RS232 Port, Plastic rod, brush, power cord, fuse, manual.

    Optional Accessories:

    PC software, COM Line, sample plate, sample cutter, calibration weight, print paper

    Coefficient of Friction (COF) Test Module:

    • The Coefficient of Friction test is essential for evaluating the frictional properties of wrap films (NOT layer to layer, but one layer only to a specific surface that does not stick to wrap film) . The module allows you to assess how easily a film slides against other surfaces, which is particularly important in packaging applications where films need to be easy to apply without excessive adhesion or slippage.
    • This test is beneficial for assessing the slip resistance of stretch wrap films, ensuring that products wrapped with these films can be handled efficiently without issues like sticking or tearing.
    • Ideal for industries like food packaging, logistics, and medical packaging, where frictional properties of films are critical to performance.

    The Module includes sled assembly, fixed sample clamp, and an updated program.

    Small Force Peel Test Module:

    • The Small Force Peel Test module is designed to test films that require very low peeling force. This is particularly useful for films used in food packaging or medical wraps, where delicate films must be peeled easily and without damage.

    • This accessory allows the tester to measure the adhesion strength of films that typically exhibit low peel force, enabling manufacturers to determine the effectiveness of their films in various real-world applications.
    • The Small Force Peel Test helps ensure that stretch wrap films with minimal adhesion provide the right balance of cling without causing damage to the product or package.

    The Module includes fixed sample clamp, and an updated program.

    Catalog (COF Feature)

    Support and Training

    At Cell Instruments, we provide comprehensive support and training for our customers to ensure they maximize the potential of their SPC-01 Peel Cling Tester. Our services include:

    • Installation Support: Assistance with setup and calibration.
    • Training Materials: In-depth training on how to operate the tester.
    • Technical Support: Ongoing customer service for any operational issues or inquiries.
    • Upgrades and Maintenance: Keep your equipment up to date with the latest program.

    To save cost for customers, we recommended our always free-of-charge online/remote way of above services.

    FAQs about Peel Cling Tester

    What is the purpose of the SPC-01 Peel Cling Tester?

    The SPC-01 is used to measure the cling adhesion of stretch films by testing how well one layer of film adheres to another. This test is essential in packaging applications where secure film adhesion is critical.

    What standards does the SPC-01 adhere to?

    The SPC-01 complies with ASTM D5458.

    Can the SPC-01 test different types of films?

    Yes, the SPC-01 is versatile and can test various stretch films, food wraps, medical packaging films, and more.

    How does the SPC-01 handle data?

    The tester offers real-time data display, peak force recording, and supports printing of results directly from the device.
